QM-MAXVUE

Spec Sheet

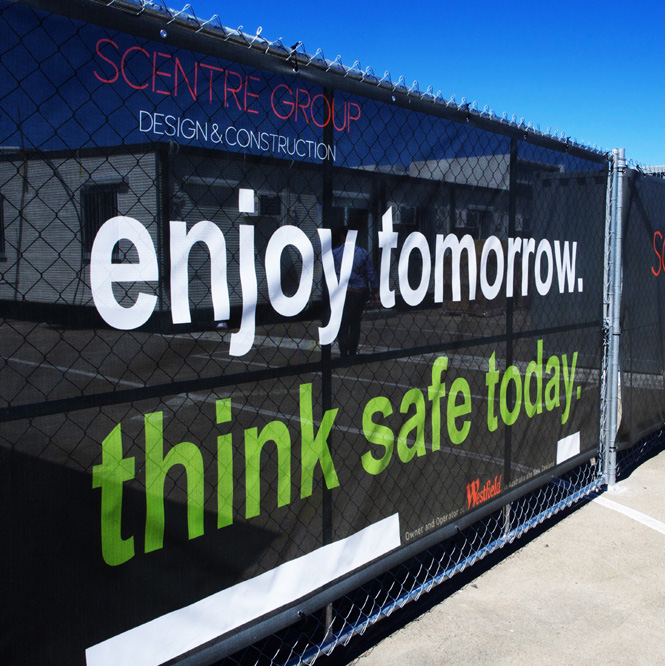

Mesh 50/50 view PVC Banner w/ removable liner

Benefits

  • Fire Retardant
  • Perforated To Decrease Wind Resistance
  • Durable and Tear Resistant
  • Polyester & PVC Composition
  • Non-Glare Matte Finish

Applications

  • Outdoor Banners
  • Window Signage
  • Fence Signage
  • Job Site Signage
  • Hanging Banners
Compare
Our 14 mil mesh banner with liner is reinforced with polyester scrim for added durability. The liner makes the printing process easier by preventing ink spray through and helping he media to feed easily through the printer. 50% hole to substrate ratio allows for vivid images and a 37% airflow.

Additional information

Surface Finish

Mesh White Gloss

Whiteness

103 (CIE Ganz)

Base Material

PVC/Polyester Fabric

Opacity

50/50

Gloss Measurement

10 +/- by angle of 60

Durability

Indoor: 1 year Outdoor: 6 months

Roll Length

150'

Roll Width

38", 54", 60"

Core

3"

Print Side

Print Side Out

Brightness

81 (ISO Blue Whiteness)

Ink Recommendations

Eco-Solvent, Latex, UV

Color

White

Base Weight

244 GSM +/- 10%

Caliper

14 mil +/- 1 mil
